MORA

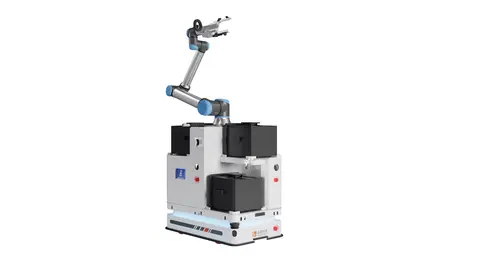

Collaborative Industrial Robots
Laser+QR Code+Reflector
Hybrid Navigation
≤1150mm
Operation Radius
≤0.5
Machine Vibration(g)
600
Collaborative Robots Payload(kg)
±1mm
Positioning Repeatability
.webp)
2/≥8
Run Time (h)
Basic Parameters
Chassis length 650mm
Chassis width 1000mm
Bidirectional
Self weight 300kg
Battery
Lithium-ion 48v 70Ah
Charge time 2H
Runtime ≥8H
Safety
System
Standard dual lasers; front/rear 3D cameras;
bumper; lasers for vertical protection;
single-point laser (optional);
hole detection; sound and light alarm.
Performance
Manipulator rated load 12kg（Customized）
Machine vibration ≤0.5g
Height above ground 25mm
Repeatability ±1mm
Noise ≤75db
Ground flatness 10mm/m2
Max. slope 5%
Ground clearance 35mm
Still tolerance 10mm
Communication
IEEE 802.11 a/g/b/n/ac/ax 2.4/5GHz, 5G optional
Main Function
