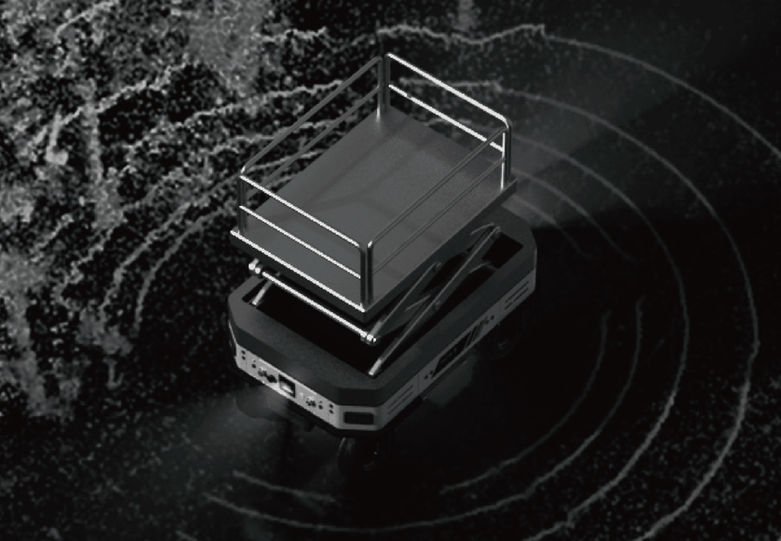

RANGER

Small Omnidirectional Mobile Robot

Small Omnidirectional Mobile Robot

Price: $

Price:

The Ranger is an exceptional omnidirectional robot designed to effortlessly navigate both indoor and outdoor environments, adapting to their dynamic nature. Moreover, it excels in carrying substantial payloads with ease.

Smart Integrated Structure

The RANGER is a four-wheel drive robot with servo hub motors for agile movement. It's great for autonomous driving, offering precise trajectory tracking. Optional sensors like LiDAR and cameras help with environment perception.

Modularfree Combination

The Ranger is a sturdy, long-lasting and minimalist design with a carrying capacity of 150 KG. Users can easily create their own products by combining modules freely.

Modular UPS with Hot-swapping Support

Hot-swapping allows users to swiftly replace batteries in a running system, making robot maintenance easier and battery replacement quicker.

Intelligent algorithm for navigation and multi-point path planning

Ranger uses intelligent scheduling and advanced map technology to autonomously plan and navigate, track lines, and efficiently complete operations with multi-point route planning.

Modular UPS with Hot-swapping Support

Hot-swapping allows users to swiftly replace batteries in a running system, making robot maintenance easier and battery replacement quicker.

Technical Params

180cm70kg

Height and weight

560 MM

Axle Track

22NM*4

Rated Torque

4 wheels steering

Maximum Obstacle Height

2-8H

Battery Life

48V 24Ah
(Support up to 4 batteries)

Single Battery Capacity

1228mmX876mmx520mm

Dimensions(WxHxD)

48V brushless geared motor

Motor

2.6M/S

Speed

Climbing Ability

1H(Single Battery)

Charging Time

IP55

Protection Level

100KG

Weight

600W*4

Rated Power

4WD

Motion Mode

150KG

Payloads

Lithium Battery

Battery Type
